Load Pins & Load Shackles

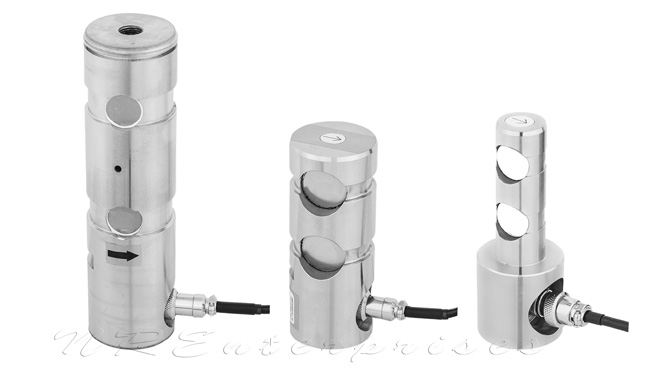

Load Pins
NRE Load Pins are industrial load cells widely used for various force measurement and overload protection applications in pulleys, sea, sub-sea, etc. applications and can be manufactured for any size and capacity ranging from 200 kg to 50 t (or more) as per the application.
Applications : Marine, Defense, Power, Automotive, Construction, EPC and various other industries
Salient Features :
- Specifically Designed for marine, ambient, hazardous & foundry applications
- MOC Alloy Steel/Stainless Steel with IP67 Protection Grade
- Accuracy Class of 0.5% of Full Scale
- Operating Temperature Range between -20°C to +70°C

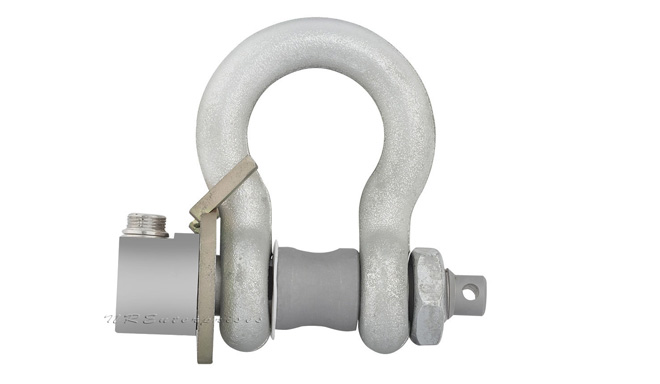

Load Shackles
NRE Load Shackles are used for load/force measurement in ropes, cables, clamps, etc. They are widely used in sea and sub-sea applications for measuring the pulling and/or towing load of ropes, winches, tug boats, ships, vessels, etc.
Applications : Marine, Defense, Power, Automotive, Construction, EPC and various other industries
Salient Features :
- Specifically Designed for marine, ambient, hazardous & foundry applications
- MOC Alloy Steel/Stainless Steel with IP67 Protection Grade
- Accuracy Class of 0.5% of Full Scale
- Operating Temperature Range between -20°C to +70°C
